Learn the cost per square foot for retaining wall installation and what affects pricing, materials, labor, and long-term value.
A retaining wall usually costs $20–$75 per square foot of wall face, but the final price depends on much more than the wall size. Height, drainage, soil conditions, engineering, site access, and material choice all affect the total cost.
Taller walls and commercial projects often require permits, engineering, and added reinforcement, which can increase the budget. For commercial developments, HOA communities, and residential properties in Charlotte, NC, working with an experienced contractor helps avoid costly problems and keeps the project on track.
Keep reading to learn what affects retaining wall costs and what to expect before requesting a quote.

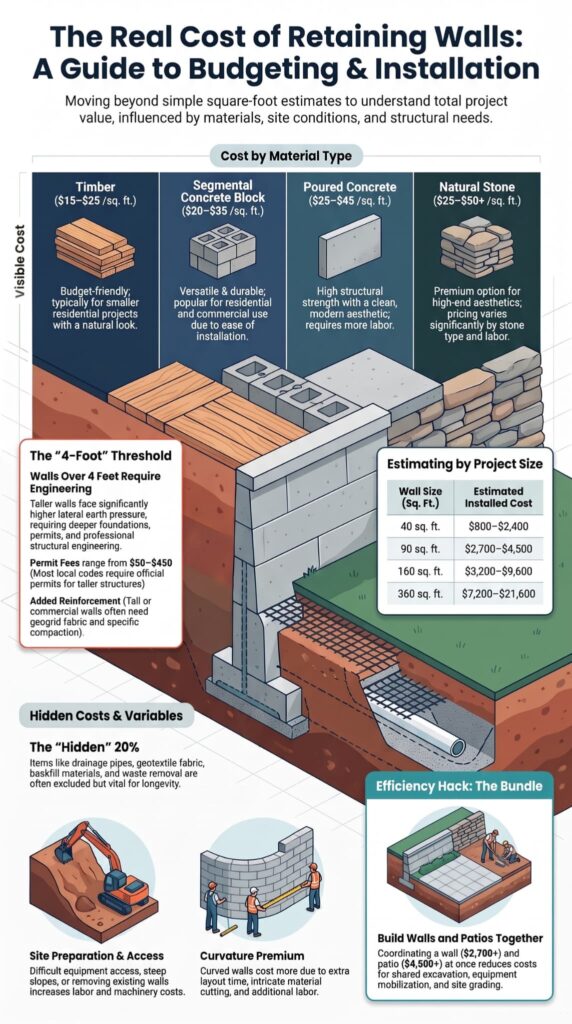

Retaining Wall Cost at a Glance
- Typical installed cost ranges from $20–$75 per square foot of wall face.
- Walls exceeding 4 feet usually require engineering, permits, and additional reinforcement.
- Commercial projects demand greater coordination, code compliance, and drainage planning than residential installations.
What Is the Average Cost Per Square Foot for a Retaining Wall?
Most retaining wall projects cost $20 to $75 per square foot installed. The final price depends on the wall material, height, drainage, site conditions, and whether engineering is required.
For commercial properties, the total cost is about more than the wall itself. Site access, permits, drainage, and local building requirements can all affect the budget.
The installed price often includes:
- Excavation
- Base preparation
- Drainage system
- Wall materials
- Professional installation

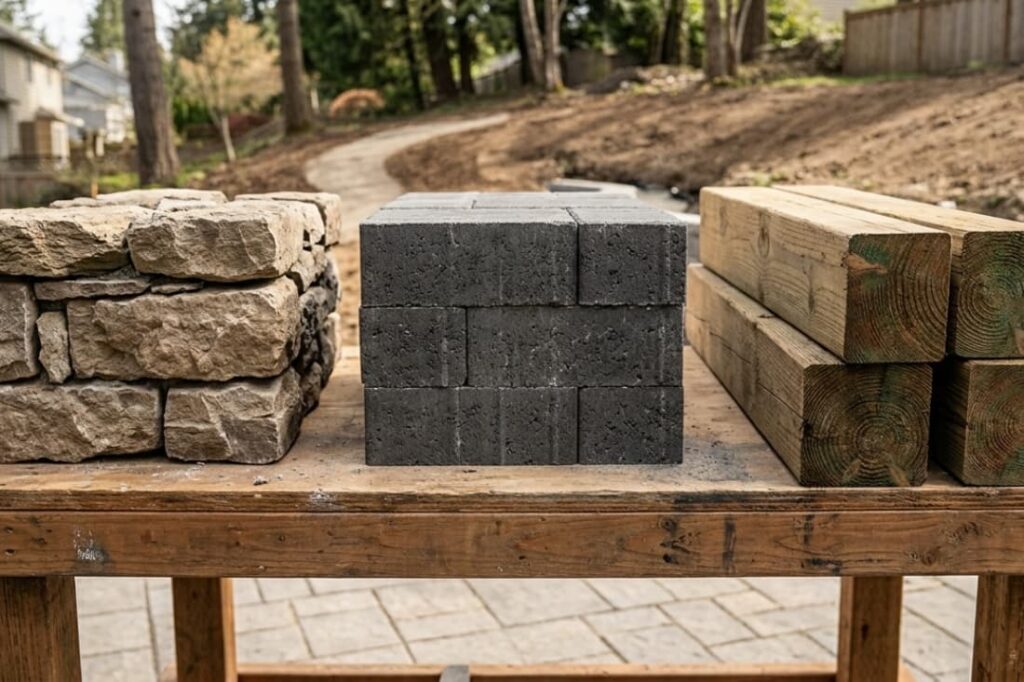

| Material | Typical Installed Cost |
| Timber | $15–$25/sq. ft. |
| Segmental concrete block | $20–$35/sq. ft. |
| Poured concrete | $25–$45/sq. ft. |
| Natural stone | $25–$50+/sq. ft. |
| Gabion wall | $20–$40/sq. ft. |
Decorative finishes, premium capstones, textured wall faces, and custom colors can increase the total cost.
For commercial developments, HOA communities, and residential projects in Charlotte, NC, Lapis Patios plans each retaining wall around the site’s needs, drainage, and local requirements, taking key factors affecting retaining wall cost into account before construction begins. This helps clients understand the full project cost before construction begins.
What Factors Increase Retaining Wall Installation Costs?
The cost of a retaining wall depends on more than its length. Wall height, drainage, engineering, and site conditions often have a bigger impact on the final price.
As highlighted by ScienceDirect
“An increase in wall height directly affects the active lateral earth pressures acting on the wall. An increase in wall height increases both sliding forces and overturning moments; therefore, it will cause significant increases in the optimum wall cost.” – ScienceDirect
Walls over 4 feet usually need engineering, deeper foundations, permits, and extra reinforcement. These requirements can increase the total project cost.
Common cost factors include:
- Wall height
- Wall length
- Excavation
- Site preparation
- Drainage system
- Engineering
- Permit fees
- Soil conditions
- Slope of the site
- Equipment access
Curved walls also cost more than straight walls because they take extra layout, cutting, and labor.
For commercial projects, there are even more details to consider. Parking lots, apartment communities, retail centers, and HOA properties often require grading, stormwater planning, accessibility, and code compliance before construction begins.
Why Don’t Contractors Really Price Retaining Walls Per Square Foot?
Square-foot pricing is helpful for early budgeting, but it does not show the full cost of a retaining wall. Every project has different site conditions, drainage needs, and structural requirements.
In a recent analysis by ScienceDirect
“The study demonstrates that when trained with a large dataset, ANN models perform very well by predicting the optimal cost with high performance. The optimization of design variables … to achieve a minimum-cost design.” – ScienceDirect
Instead of using one flat price, professional contractors evaluate the entire project before preparing an estimate.
A complete quote may include:
- Wall height and loading
- Drainage system
- Excavation
- Reinforcement
- Material availability
- Equipment access
- Construction schedule
- Soil removal and disposal
Commercial projects often require even more planning. Contractors may need to coordinate with other trades, maintain safe access for tenants, meet HOA requirements, and follow local building codes.
Lapis Patios evaluates each retaining wall as part of the overall site. For commercial developments and residential projects throughout Charlotte, NC, this approach provides more accurate pricing and helps avoid unexpected costs during construction.
Square-foot pricing is still useful for comparing early budget options, but a site evaluation provides the most reliable estimate.
How Much Does a Retaining Wall Cost by Size?
Larger retaining walls cost more, but height also affects the price. As walls get taller, they often need extra engineering, deeper foundations, and more reinforcement. That increases the cost per square foot.
| Wall Size | Estimated Installed Cost |
| 40 sq. ft. | $800–$2,400 |
| 90 sq. ft. | $2,700–$4,500 |
| 160 sq. ft. | $3,200–$9,600 |
| 360 sq. ft. | $7,200–$21,600 |
For example, a 3-foot by 30-foot wall (90 square feet) often costs $2,700 to $4,500. Projects with premium materials, difficult access, or engineering may cost more.
Contractors also consider retaining wall pricing for materials, along with costs for:
- Removing an existing wall
- Hauling away debris
- Backfill materials
- Drain pipe
- Geotextile fabric
- Drainage outlets
- Compaction equipment
- Base and backfill compaction
For commercial developments, the project may also involve grading, utility coordination, permits, and site access planning. Lapis Patios reviews the entire site before providing an estimate, helping commercial and residential clients in Charlotte, NC understand the full project cost.
How Does a Retaining Wall Affect Your Patio Budget?
Credits: mydadvice
Retaining walls and patios are different parts of a project, but building them together can save time and reduce some construction costs. They often share excavation, grading, drainage, and equipment.
Example project budget:
- Retaining wall (90 sq. ft.): $2,700–$4,500
- Paver patio (300 sq. ft.): $4,500–$7,500
- Estimated total: $7,000–$12,000+
Building both at the same time may reduce costs for:
- Excavation
- Drainage installation
- Site grading
- Equipment use
- Landscape restoration
For commercial developments, apartment communities, HOA properties, and residential projects in Charlotte, NC, Lapis Patios plans retaining walls and patios as one complete hardscape system. Coordinating the work from the start helps improve scheduling, supports code compliance, and creates a finished project built for long-term performance.
What Hidden Costs Should You Plan For?
Not every retaining wall estimate includes the full cost of the project. Some quotes cover only the wall materials and basic installation, leaving out important items that affect the final price.
Common costs that may not be included are:
- Engineering fees
- Permit fees
- Drain pipe
- Geotextile fabric
- Backfill materials
- Rock excavation
- Utility adjustments
- Material delivery
- Waste removal
- Landscaping restoration
- New sod or planting
Permit fees often range from $50 to $450, depending on the wall height and local requirements.
It’s also worth looking closely at very low bids. A lower price may mean important parts of the project, such as drainage, reinforcement, or proper compaction, have been left out. Those shortcuts can lead to expensive repairs later.
For commercial developments, HOA communities, and residential projects in Charlotte, NC, Lapis Patios prepares detailed estimates that consider the entire retaining wall system. Planning for these costs from the start helps reduce surprises and supports long-term performance.
How Can You Budget for the Right Wall Instead of the Cheapest One?
Square-foot pricing is a good way to estimate a budget, but understanding the overall retaining wall cost through a detailed proposal gives a much clearer picture of the total project cost.
When comparing quotes, look beyond the price. Make sure you understand what is included and what is not.
Ask questions like:
- Does the quote include drainage?
- Is engineering included?
- Are permits included?
- What warranty is offered?
- Which materials will be used?
- Are there any excluded costs?
A retaining wall built with proper drainage, a strong foundation, and the right reinforcement is more likely to last and require fewer repairs. Careful planning, quality construction, and attention to local requirements help deliver lasting value.
FAQ
What factors have the biggest impact on retaining wall installation cost?
Retaining wall installation cost depends on several factors, including wall height, wall length, material selection, site conditions, and drainage requirements.
Excavation cost, site preparation cost, labour cost retaining wall, engineering fees, permit fees, and access difficulty also affect the final price. Because every project is different, retaining wall pricing can vary significantly from one installation to another.
Why does the cost per square foot vary between projects?
The cost per square foot varies because every retaining wall has different design and construction requirements. The wall height cost factor, wall length cost factor, complex terrain cost, hillside retaining cost, curve and corner cost, and accessibility for machinery all influence the installed cost retaining wall. Regional pricing differences, labour rates, and material availability also affect the total project cost.
Which retaining wall material usually costs the most?
Material prices depend on durability, appearance, and installation complexity. Natural stone wall cost and poured concrete wall cost are generally higher than segmental block wall cost, timber retaining wall cost, or gabion wall cost.
The material cost retaining wall also includes base material cost, drainage cost, capstone cost, coping cost, and any aesthetic finishes selected for the project.
Should homeowners compare multiple retaining wall quotes?
Yes. Requesting a contractor quote from several qualified contractors allows you to compare retaining wall cost, project timeline, warranty cost, inspection fees, and the scope of work.
Comparing multiple quotes also helps you evaluate retaining wall design cost, structural engineer cost, drainage solutions, and compliance with local building codes before choosing a contractor.
What additional costs should homeowners expect?
Many retaining wall projects include costs beyond the wall itself. These may include removal of old wall cost, disposal cost, backfill material cost, geotextile fabric cost, drain pipe cost, weep hole cost, compaction cost, regrading cost, landscaping restoration, planting and sodding, and future repair and maintenance cost. Including these expenses in your budget helps prevent unexpected costs during construction.
Plan Your Retaining Wall Budget With Confidence
The cost of a retaining wall depends on the project. Wall height, drainage, excavation, engineering, site access, and materials all affect the final price. Planning ahead helps avoid unexpected costs and keeps the project on schedule.
Lapis Patios builds retaining walls for commercial properties, HOA communities, and homes throughout Charlotte, NC. Contact Lapis Patios for an estimate based on your property and project needs.
